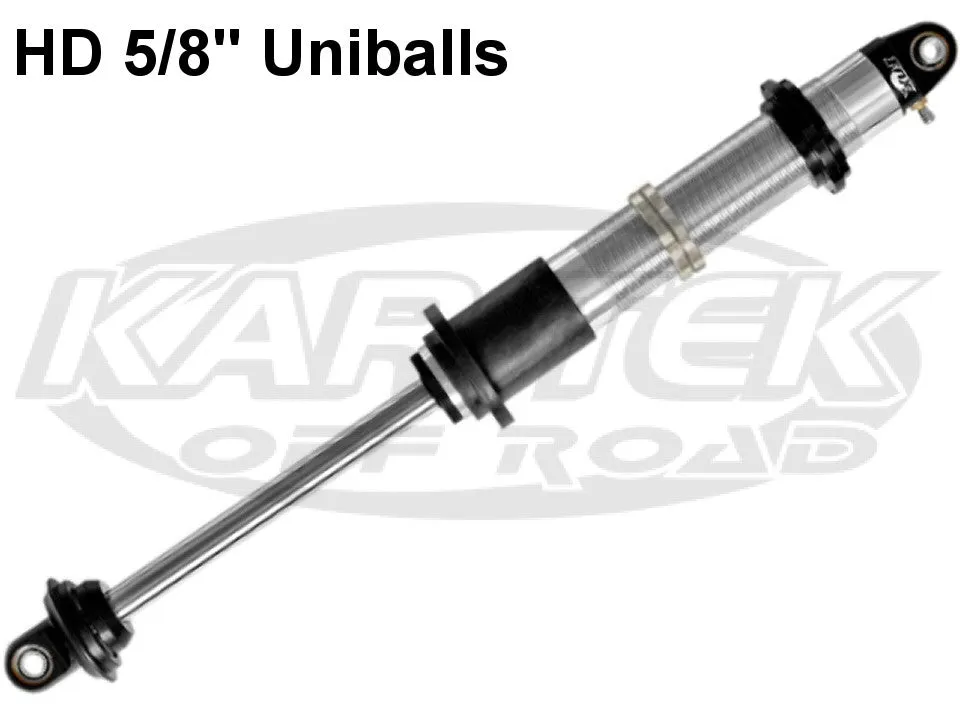

This shock has heavy duty 5/8" Uniballs
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Factory Series 980-02-355 Dimensions:
Setup For Dual Spring Rate
26" Maximum Combined Total Spring Length
Typically Customers Purchase 12" Top Spring and 14" Bottom Spring
2.0" Diameter
12.0" Travel
31.150" Extended
19.180" Collapsed
0.875" Shaft Diameter
1.50" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
50 Compression / 70 Rebound Standard Valving
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Factory Series 980-02-355 Dimensions:
Setup For Dual Spring Rate
26" Maximum Combined Total Spring Length
Typically Customers Purchase 12" Top Spring and 14" Bottom Spring
2.0" Diameter
12.0" Travel
31.150" Extended
19.180" Collapsed
0.875" Shaft Diameter
1.50" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
50 Compression / 70 Rebound Standard Valving
This shock has heavy duty 5/8" Uniballs
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Factory Series 980-02-355 Dimensions:
Setup For Dual Spring Rate
26" Maximum Combined Total Spring Length
Typically Customers Purchase 12" Top Spring and 14" Bottom Spring
2.0" Diameter
12.0" Travel
31.150" Extended
19.180" Collapsed
0.875" Shaft Diameter
1.50" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
50 Compression / 70 Rebound Standard Valving
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Factory Series 980-02-355 Dimensions:
Setup For Dual Spring Rate
26" Maximum Combined Total Spring Length
Typically Customers Purchase 12" Top Spring and 14" Bottom Spring
2.0" Diameter
12.0" Travel
31.150" Extended
19.180" Collapsed
0.875" Shaft Diameter
1.50" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
50 Compression / 70 Rebound Standard Valving
