Fox Part Number: 206-06-089

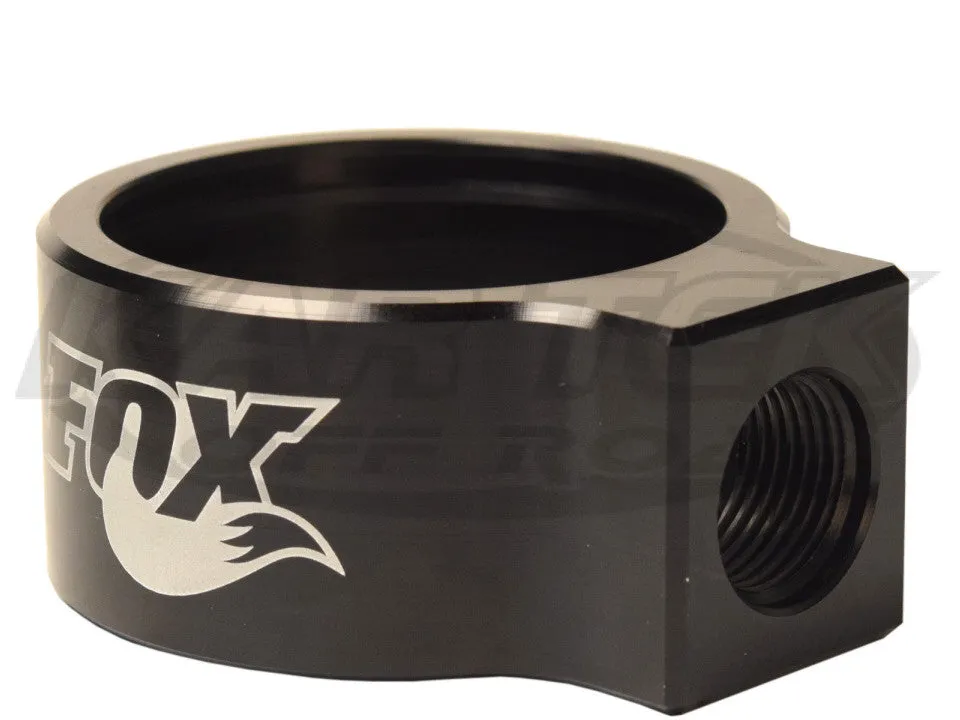

This reservoir ring allows you to position the reservoir hose on a 2.5" Fox shock any direction. Just like their rotating reservoir bridge on their piggy back shocks. The port on this ring uses AN -10 or 7/8-14 o-ring ORB fittings. It must be used on a piggy back style body because the fluid will flow through the top of the shock body instead of the body cap. This is an ideal solution for the new Fox BOC bottom out control shocks to allow you to run a remote reservoir instead of a piggy back.
This reservoir ring allows you to position the reservoir hose on a 2.5" Fox shock any direction. Just like their rotating reservoir bridge on their piggy back shocks. The port on this ring uses AN -10 or 7/8-14 o-ring ORB fittings. It must be used on a piggy back style body because the fluid will flow through the top of the shock body instead of the body cap. This is an ideal solution for the new Fox BOC bottom out control shocks to allow you to run a remote reservoir instead of a piggy back.
Fits the following Fox shock numbers:
980-02-140-A Piggy Back Internal Bypass Shock 2.5 x 10" Stroke 7/8" Shaft
980-02-141-A Piggy Back Internal Bypass Shock 2.5 x 12" Stroke 7/8" Shaft
980-02-142-A Piggy Back Internal Bypass Shock 2.5 x 14" Stroke 7/8" Shaft
980-02-143-A Piggy Back Internal Bypass Shock 2.5 x 16" Stroke 7/8" Shaft
980-02-162-A Piggy Back Shock 2.5 x 8" Stroke 7/8" Shaft
980-02-163-A Piggy Back Shock 2.5 x 10" Stroke 7/8" Shaft
980-02-164-A Piggy Back Shock 2.5 x 12" Stroke 7/8" Shaft
980-02-165-A Piggy Back Shock 2.5 x 14" Stroke 7/8" Shaft
980-02-166-A Piggy Back Shock 2.5 x 16" Stroke 7/8" Shaft
980-02-140-A Piggy Back Internal Bypass Shock 2.5 x 10" Stroke 7/8" Shaft
980-02-141-A Piggy Back Internal Bypass Shock 2.5 x 12" Stroke 7/8" Shaft
980-02-142-A Piggy Back Internal Bypass Shock 2.5 x 14" Stroke 7/8" Shaft
980-02-143-A Piggy Back Internal Bypass Shock 2.5 x 16" Stroke 7/8" Shaft
980-02-162-A Piggy Back Shock 2.5 x 8" Stroke 7/8" Shaft
980-02-163-A Piggy Back Shock 2.5 x 10" Stroke 7/8" Shaft
980-02-164-A Piggy Back Shock 2.5 x 12" Stroke 7/8" Shaft
980-02-165-A Piggy Back Shock 2.5 x 14" Stroke 7/8" Shaft
980-02-166-A Piggy Back Shock 2.5 x 16" Stroke 7/8" Shaft
